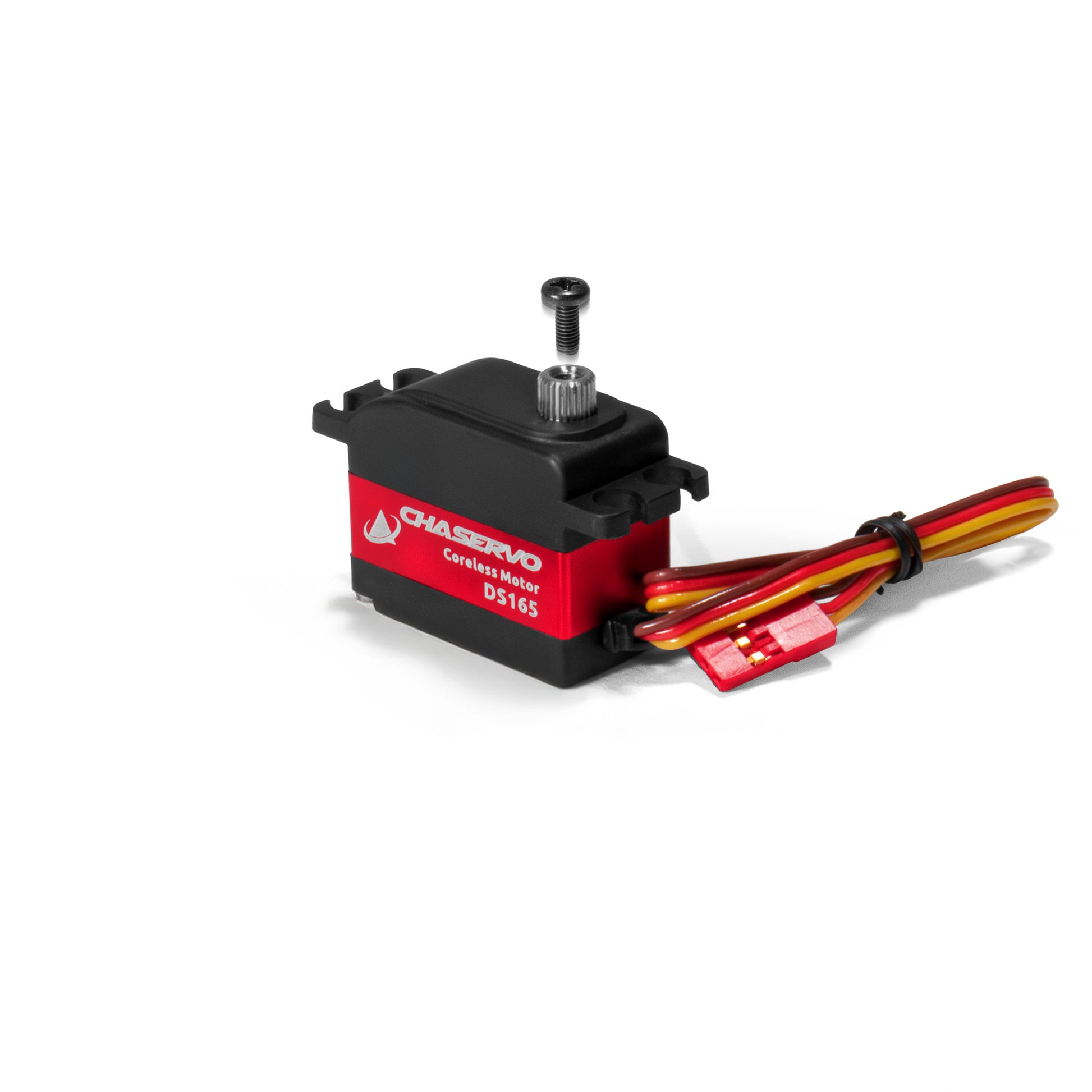

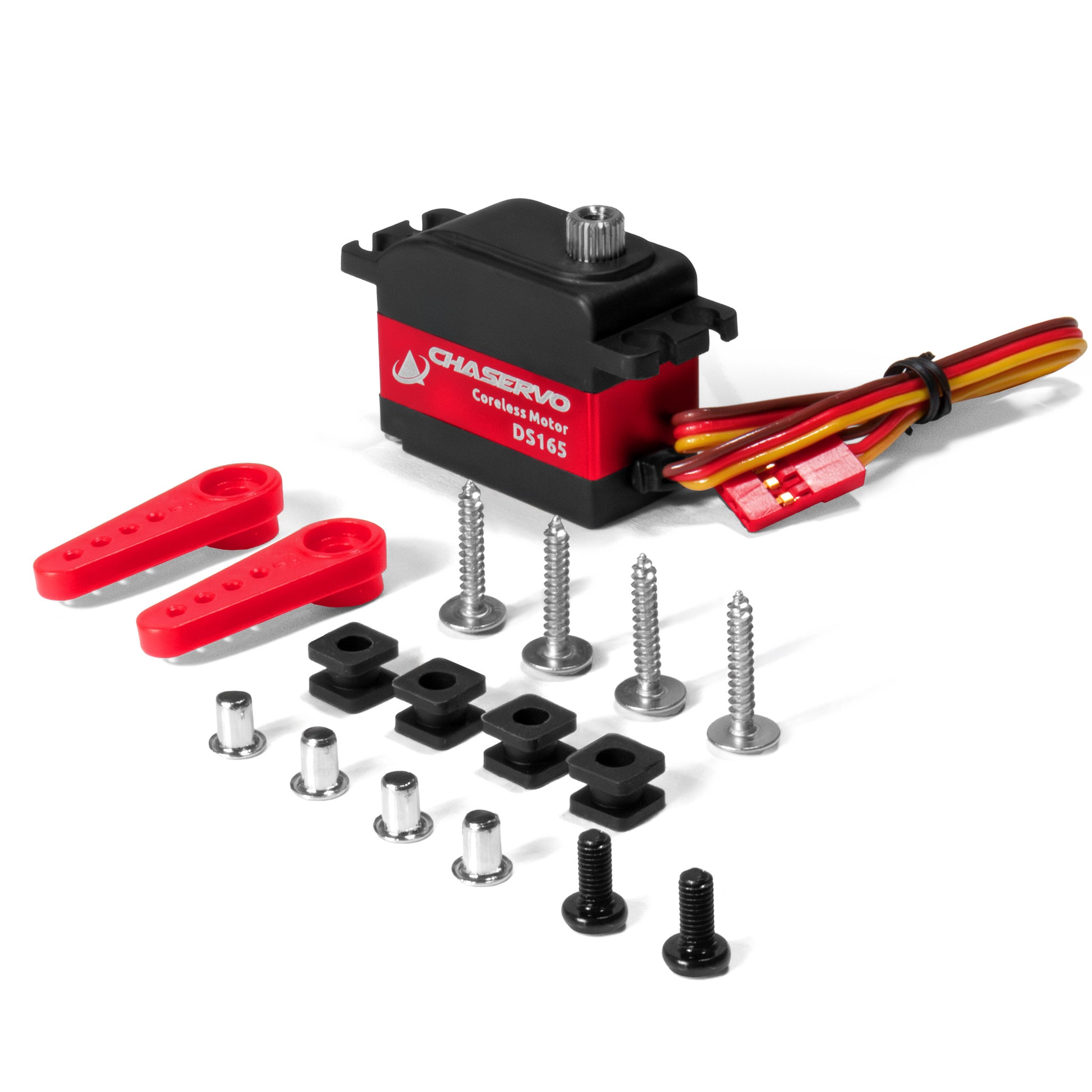

CHASERVO DS165 7.8kg 0.059 sec at 7.4v
CHASERVO DS165 7.8kg 0.059 sec at 7.4v
Regular price
$101.00 AUD
Regular price
Sale price
$101.00 AUD
Unit price
/
per
Couldn't load pickup availability
| Dimensions: 1.25 x 0.64 x 1.04 in (32 x 16.5 x 26.5 mm) |
| Weight: 1.26 oz (36 g) |
| Rated Voltage: DC 7.4V |
| Voltage Range: DC 3.5 – 9.0V |
| Holding Torque @ 4.8V: 74.99 oz·in (5.4 kg·cm) |
| Holding Torque @ 7.4V: 108.32 oz·in (7.8 kg·cm) |
| Holding Torque @ 8.4V: 124.98 oz·in (9.0 kg·cm) |
| Output Torque @ 4.8V: 4.86 kg·cm |
| Output Torque @ 7.4V: 7.02 kg·cm |
| Output Torque @ 8.4V: 112.48 oz·in (8.10 kg·cm) |
| No-load Speed @ 4.8V: 0.088sec/60° |
| No-load Speed @ 7.4V: 0.059sec/60° |
| No-load Speed @ 8.4V: 0.055sec/60° |
| max. Current @ 7.4V: 3.25 A |
| max. Current @ 8.4V: 3.65 A |
| Case Material: High Quality Technopolymer and Aluminium |
| Gear Set Material: Metallgetriebe |
| Position sensor: Contactless / Hall sensor |
| Motor: Coreless DC |
| Ball Bearing: 2 x Ball Bearing |
| Working Frequency: 1520µs/333Hz |
| Pulse Range: 500 μs – 2500 μs |
| Programmable: Ja |
