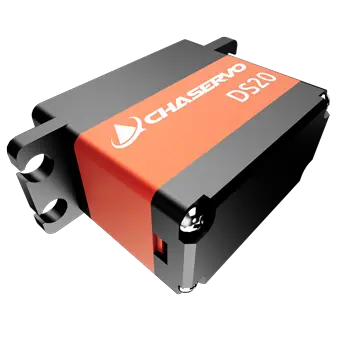

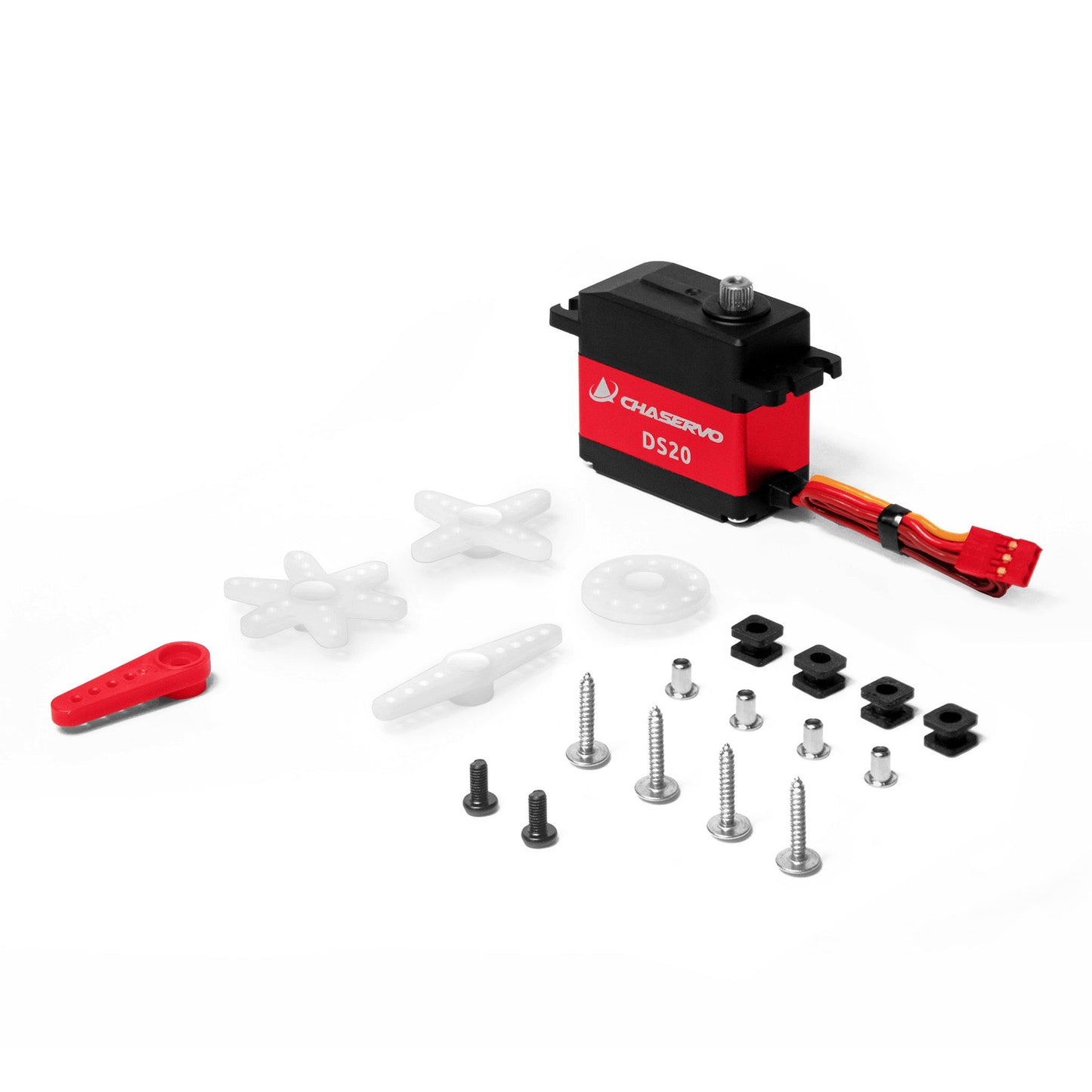

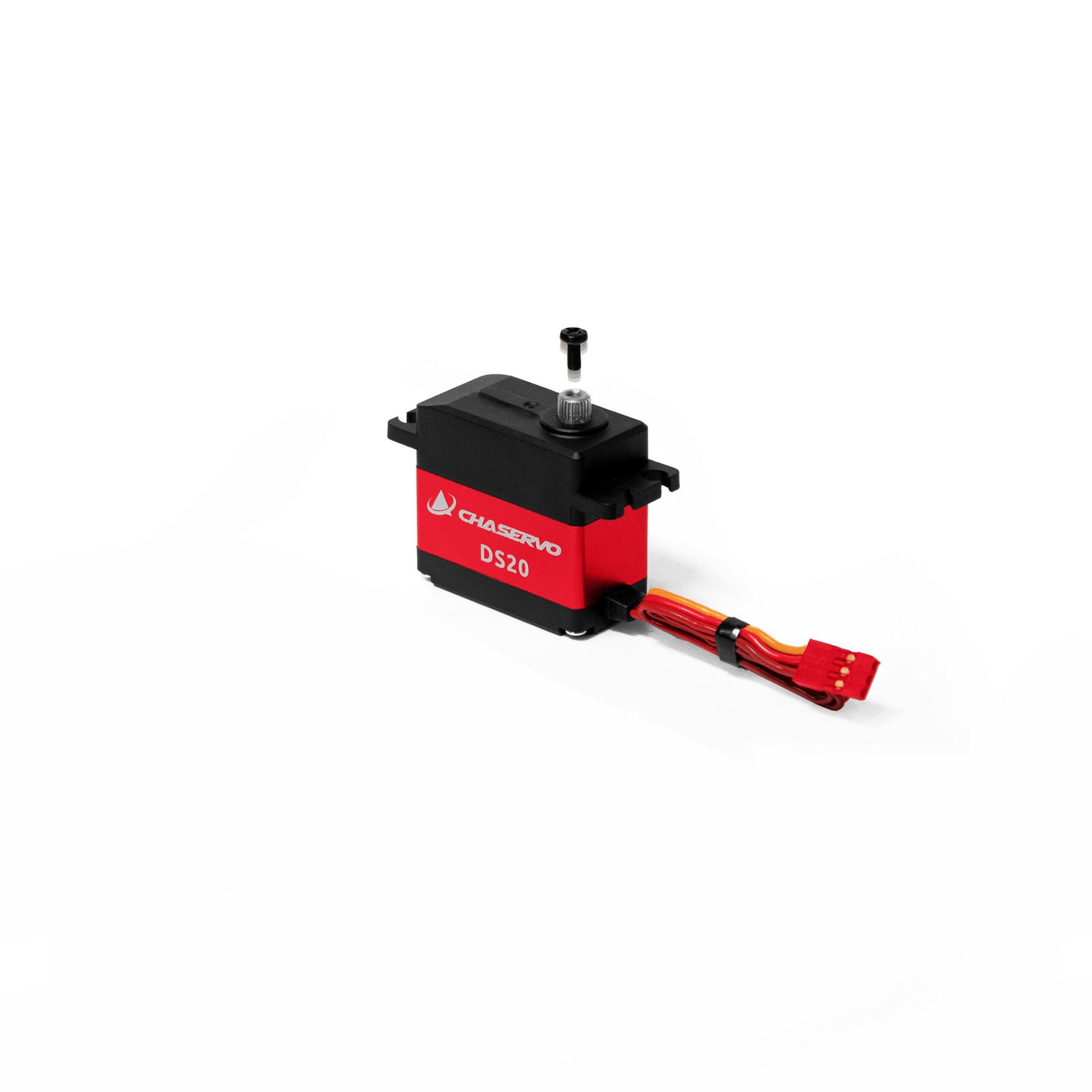

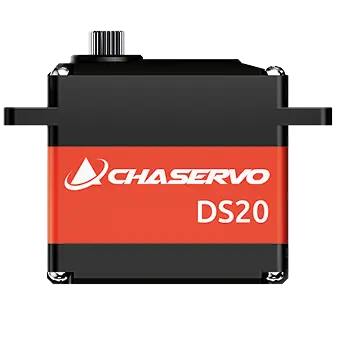

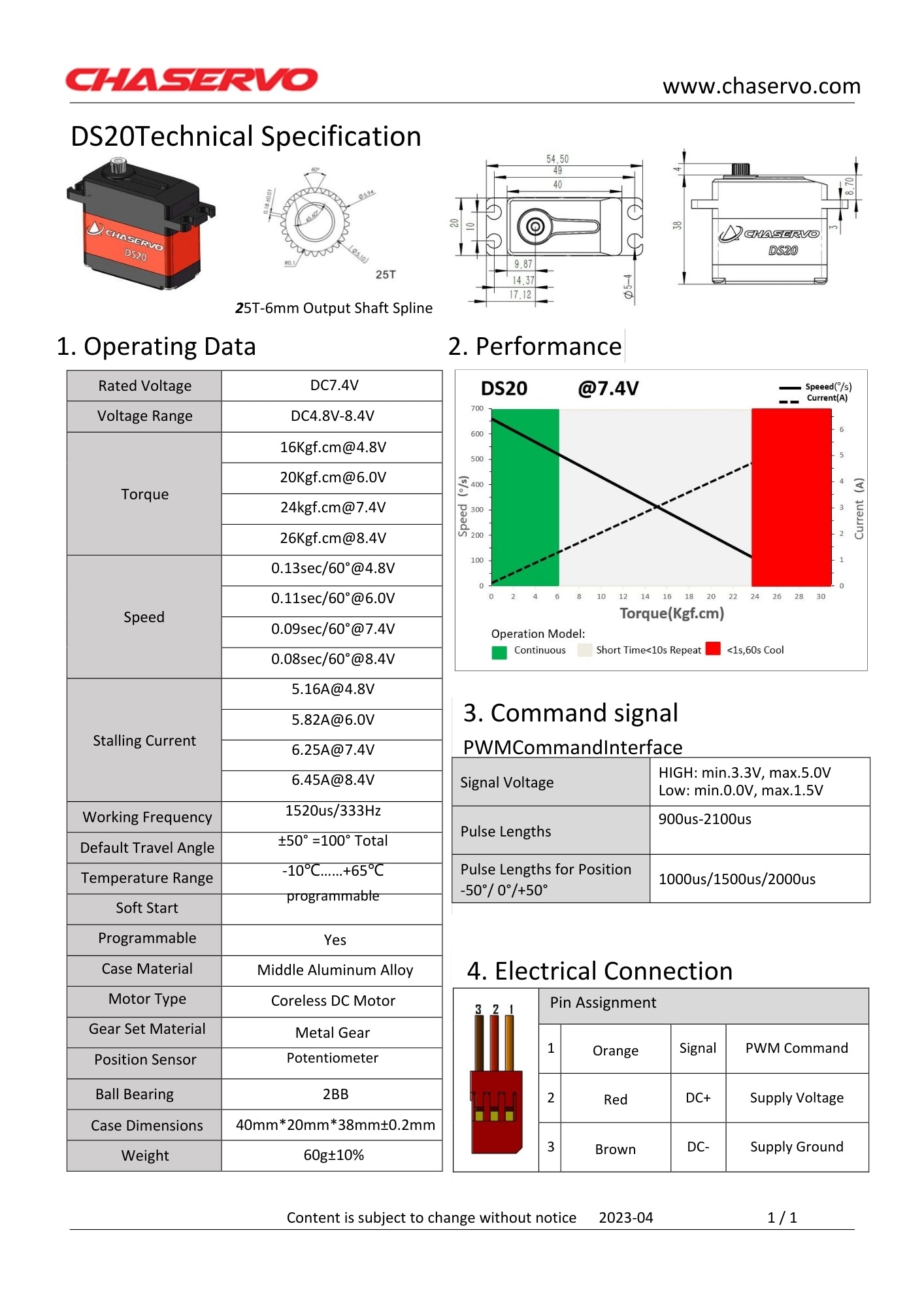

Brand: Chaservo
|
|
Version: DS20
|
|
Dimensions: 1.57 x 0.78 x 1.49 in (40 x 20 x 38 mm)
|
|
Weight: 2.25 oz (64 g)
|
|
Rated Voltage: DC 7.4V
|
|
Voltage Range: DC 4.0 – 9.0V
|
|
Holding Torque @ 6.0V: 227.75 oz·in (20.0 kg·cm)
|
|
Holding Torque @ 7.4V: 333.29 oz·in (24.0 kg·cm)
|
|
Holding Torque @ 8.4V: 361.07 oz·in (26.0 kg·cm)
|
|
Output Torque @ 6.0V: 236.08 oz·in (17.0 kg·cm)
|
|
Output Torque @ 7.4V: 20.4 kg·cm
|
|
Output Torque @ 8.4V: 306.91 oz·in (22.1 kg·cm)
|
|
No-load Speed @ 6.0V: 0.11sec/60°
|
|
No-load Speed @ 7.4V: 0.09sec/60°
|
|
No-load Speed @ 8.4V: 0.08sec/60°
|
|
max. Current @ 6.0V: 5.82 A
|
|
max. Current @ 7.4V: 6.25 A
|
|
max. Current @ 8.4V: 6.45 A
|
|
Case Material: High Quality Technopolymer and Aluminium
|
|
Gear Set Material: Metallgetriebe
|
|
Ball Bearing: 2 x Ball Bearing
|
|
Position sensor: Potentiometer
|
|
Motor: Coreless DC
|
|
Working Frequency: 1520µs/333Hz
|
|
Pulse Range: 900µs-2100µs
|
|
Programmable: Ja
|
|
Output Shaft Spline: 25T, 0.236 in (6 mm)
|
