CHASERVO HV150 30kg 0.1 sec at 7.4v
CHASERVO HV150 30kg 0.1 sec at 7.4v
Regular price
$185.00 AUD
Regular price
Sale price
$185.00 AUD
Unit price
/
per
Couldn't load pickup availability

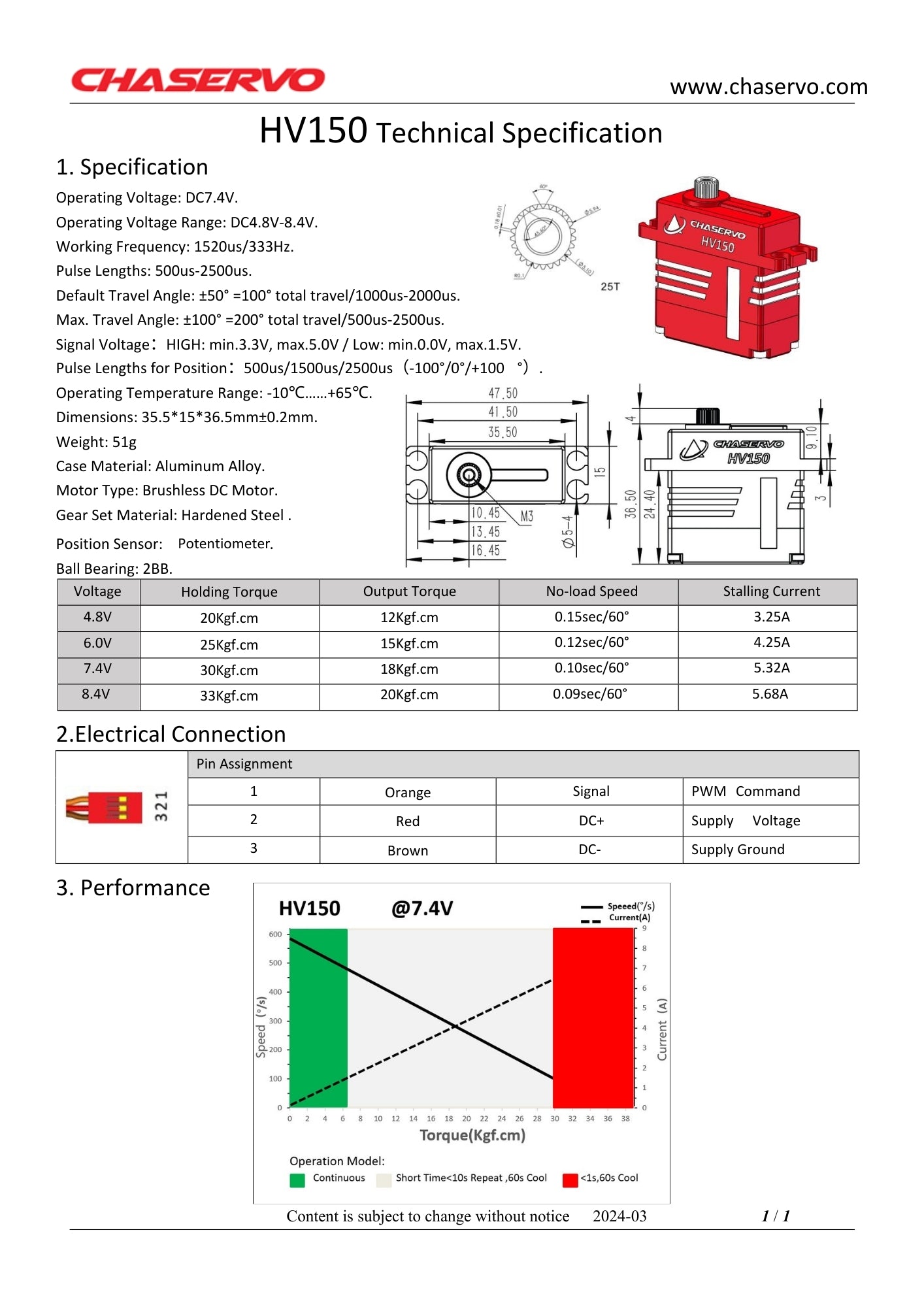

| Dimensions: 35.5 x 15 x 35.5 mm |
| Weight: 1.79 oz (51 g) |
| Rated Voltage: DC 7.4V |
| Voltage Range: DC 4.8 – 8.4V |
| Output Shaft Spline: 25T, 0.236 in (6 mm) |
| Holding Torque @ 4.8V: 277.74 oz·in (20.0 kg·cm) |
| Holding Torque @ 6.0V: 347.18 oz·in (25.0 kg·cm) |
| Holding Torque @ 7.4V: 416.62 oz·in (30.0 kg·cm) |
| Holding Torque @ 8.4V: 458.28 oz·in (33.0 kg·cm) |
| Output Torque @ 4.8V: 166.64 oz·in (12.0 kg·cm) |
| Output Torque @ 6.0V: 208.31 oz·in (15.0 kg·cm) |
| Output Torque @ 7.4V: 249.97 oz·in (18.0 kg·cm) |
| Output Torque @ 8.4V: 277.74 oz·in (20.0 kg·cm) |
| No-load Speed @ 4.8V: 0.15sec/60° |
| No-load Speed @ 6.0V: 0.12sec/60° |
| No-load Speed @ 7.4V: 0.10sec/60° |
| No-load Speed @ 8.4V: 0.09sec/60° |
| Case Material: Aluminium |
| Gear Set Material: Metallgetriebe |
| Position sensor: Potentiometer |
| Motor: 4 Pole Brushless |
| Working Frequency: 1520µs/333Hz |
| Pulse Range: 500 μs – 2500 μs |
| Programmable: Ja |
